How to identify light emission and light reception in an optical module

To test an optical module, measure the transmitter's output power and the receiver's sensitivity using optical power meters, error code meters, and eye diagram analysis to ensure proper emission and reception. Testing Light Emission (Transmitter)Optical Power Measurement: Use an optical power meter to measure the output power of the module's transmitter. Ensure the power is within the module's specified range, as too high or too low output can affect transmission distance and signal quality.

Eye Diagram Analysis: Connect the module to a test setup and use an oscilloscope or eye diagram tester to visualize the signal waveform. The eye diagram shows signal clarity, jitter, and mask margins, helping detect signal degradation. Extinction Ratio: Measure the ratio of the optical power difference between the “on” and “off” states.

A higher extinction ratio indicates better signal discrimination and stronger reception capability. Wavelength Verification: Use an Optical Spectrum Analyzer (OSA) to confirm the transmitter emits at the correct wavelength and to check for unwanted harmonics or spectral drift. Testing Light Reception (Receiver)Receiver Sensitivity: Connect the optical module to a variable optical attenuator and gradually reduce the input power while monitoring the bit error rate (BER).

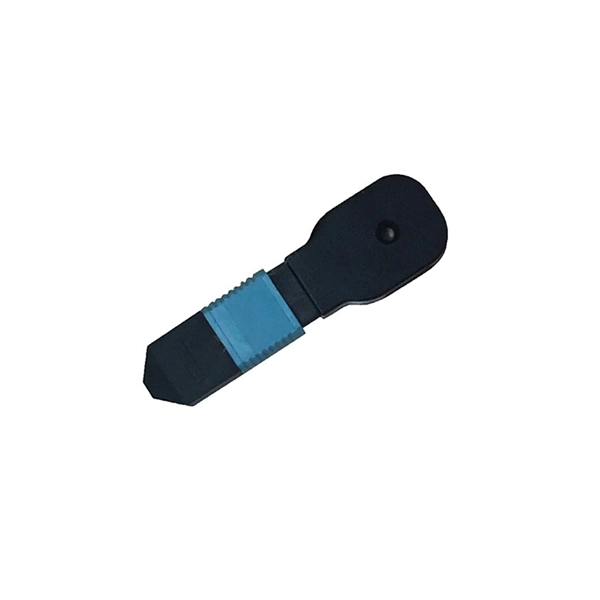

The minimum power at which the module maintains acceptable BER defines its sensitivity. Loopback Testing: Use a loopback plug or a second module to verify full-duplex operation and ensure the receiver correctly interprets incoming signals. Error Code Monitoring: Employ an error code meter to detect transmission errors and confirm the receiver's performance under different optical power levels.

Eye Diagram at Receiver: Similar to the transmitter, analyze the received signal's eye diagram to assess signal integrity and detect potential degradation caused by the optical path. Advanced Testing ConsiderationsHigh-Speed Modules: For 25G, 100G, or 800G modules, use specialized high-speed testing platforms that support multiple interfaces, tunable light sources, and automated measurement of output power, sensitivity, and eye diagrams. Environmental Testing: Conduct high and low-temperature aging tests to ensure the module maintains performance under extreme conditions.

Port and Endface Inspection: Clean and inspect fiber endfaces using an endface detector to prevent contamination from affecting emission and reception. By combining these methods, engineers can comprehensively evaluate both the light emission and reception of optical modules, ensuring they meet technical specifications and operate reliably in real-world networks.
