How to wire the circuit lighting distribution box

Fibre interconnection and data room reference Published 13 Oct 2025

Use this reference to prepare product questions for FD SOLUCIONES. Check interfaces, capacity, protection and installation requirements against the current product documentation.

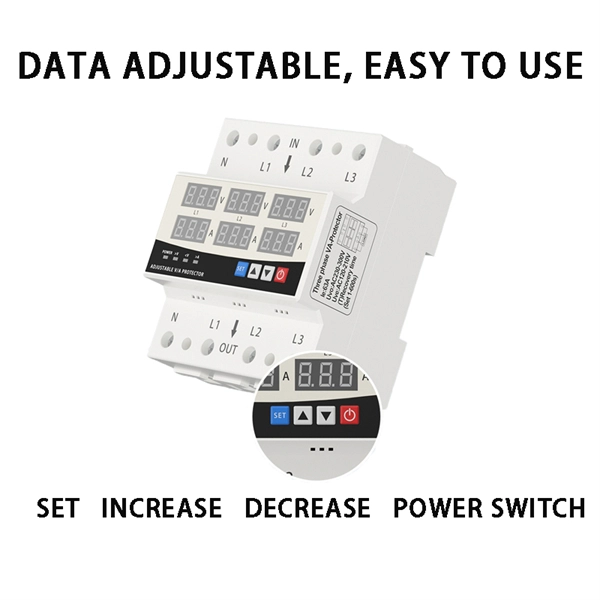

To wire a lighting circuit in a distribution box, connect the main supply to the main MCB, route the output through an RCCB, and then connect each lighting sub-circuit to individual MCBs with proper phase, neutral, and earth connections. Step 1: Prepare the Distribution BoxStart by identifying the main incoming supply (phase and neutral) and ensure the distribution box (DB) has the appropriate MCBs and RCCB for your load. For domestic lighting circuits, a single-phase 230V supply is typical, with a double-pole MCB as the main switch and single-pole MCBs for each lighting sub-circuit.

Ensure the D

B is properly earthed. Step 2: Connect the Main SupplyConnect the phase and neutral wires from the incoming supply to the input terminals of the main MCB. Connect the output of the main MCB to the input of the RCCB.

The RCC

B protects against leakage currents and electric shocks. Connect the earth wire from the supply to the earth link in the DB. Step 3: Connect Lighting Sub-CircuitsEach lighting sub-circuit should have its phase wire connected to the output of a single-pole MCB.

Connect the neutral wire of each sub-circuit to the neutral link in the DB. Connect the earth wire to the earth link.

Ensure the MC

B rating matches the load; for typical lighting circuits, 10A or 16A MCBs are common. Step 4: Wiring the Junction BoxAt the lighting junction box, strip the wires and connect the phase (live) wires from the DB to the switch input. Connect the switch output to the lighting fixture.

Join all neutral wires together and connect to the neutral from the DB. Connect all earth wires together and to the fixture's earth terminal. Use wire connectors and secure the wires neatly with electrical tape or cable ties.

Step 5: Testing and SafetyBefore turning on the power, double-check all connections for correct phase, neutral, and earth wiring. Switch on the main MCB and RCCB, then test each lighting circuit individually. Ensure there are no loose connections, sparks, or tripped breakers.

Tips

Use twin and earth cables for lighting circuits. Label each MCB for easy identification of circuits. Follow local electrical codes and safety standards.

If unsure, consult a licensed electrician to avoid hazards. By following these steps, your lighting circuits will be safely and efficiently wired in the distribution box, with proper protection and organized connections.
