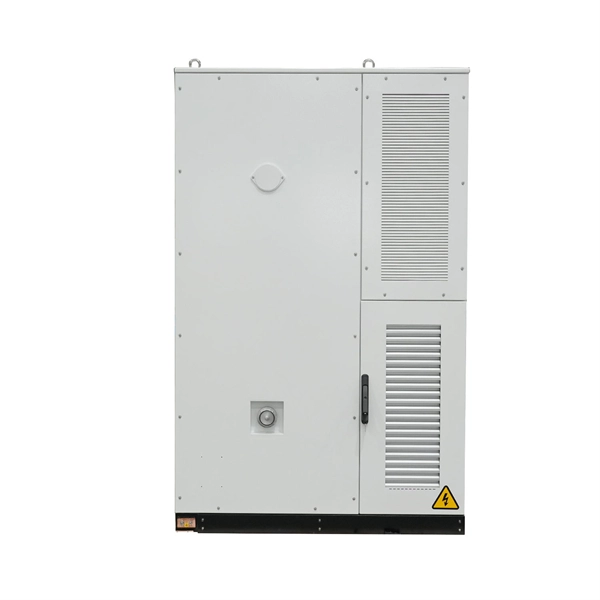

Dimensions and parameters of the distribution network automation server rack system

Standard distribution network automation server racks typically follow the 19-inch EIA-310 standard, with heights of 42U or 48U, depths from 600 mm to 1200 mm, and load capacities of 35 lbs per U, supporting proper power and cable management.

Rack Dimensions

Height: Measured in rack units (U), where 1U = 1. 75 inches (44. 45 mm).

Common full-height racks are 42U (1867 mm) or 48U (2110 mm), with shorter options like 24U or 36U for limited spaces. Width: Standard 19-inch mounting rail width (482 mm), with internal clearance around 17. 75 inches (451 mm) to fit equipment rails.

Some racks allow 21-inch or 23-inch mounting for specialized equipment. Depth: Varies from 600 mm to 1200 mm depending on equipment type. Shallow racks (24–27 in / 600–700 mm) suit patch panels and switches, while deeper racks (42–48 in / 1000–1200 mm) accommodate servers, storage arrays, and UPS units.

Adjustable mounting rails allow flexible depth configuration.

Mounting and Rail Specifications

Rail spacing: Front and rear mounting flanges are typically 719 mm apart, with rail-mounting holes 465 mm apart horizontally and 7. 1 mm diameter. Vertical hole spacing: Sets of three holes spaced 15.

9 mm, 15. 9 mm, and 12. 67 mm, totaling 44.

45 mm per 3-hole set. Rack units (U): Each U is 1. 75 inches (44.

45 mm) high, clearly labeled on mounting rails for easy installation.

Load Capacity and Power

Weight support: Each U supports 15. 9 kg (35 lbs); for example, a 4U drawer can hold up to 63. 6 kg (140 lbs),.

Power distribution: Recommended to use PDUs compatible with the rack, with each bus requiring 200–240 V AC, 30 A. Racks must accommodate AC-powered drawers and ensure proper plug compatibility. Stability: Racks must have stabilization feet or brackets to prevent tipping during installation or maintenance.

Additional Features

Ventilation: Front and rear doors often perforated (up to 85%) for airflow. Baying: Racks can be connected side-by-side without increasing overall width, allowing modular expansion. Cable management: Tool-less mounting rails and Zero-U spaces for PDUs and structured cabling improve organization and airflow.

Material: Typically steel or aluminum frames with chamfered edges and optional security locks.

Summary

For a distribution network automation server rack system, the recommended configuration is a 42U, 19-inch width, 1000–1200 mm depth rack, supporting standard 19-inch equipment, with proper load capacity, ventilation, and power distribution. Adjustable rails, labeled U spaces, and modular baying ensure scalability, efficient cable management, and compliance with EIA-310 standards.
