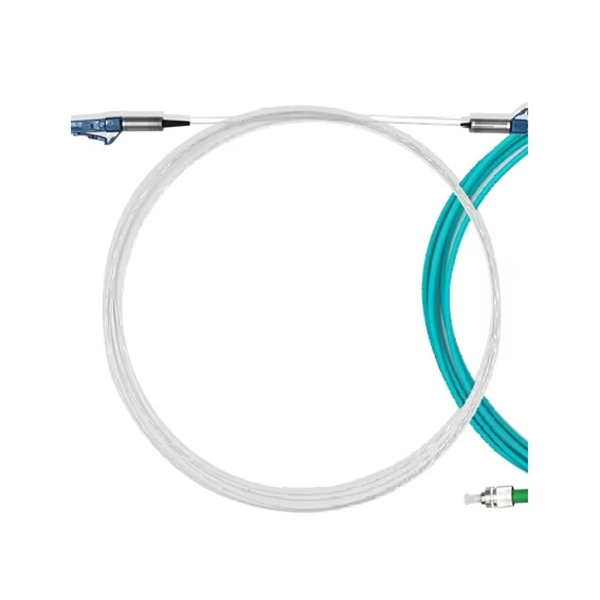

What types of high-temperature fiber optic sensors are there

High-temperature fiber optic sensors are advanced devices capable of measuring temperatures above 1000°C, using optical fibers such as silica, photonic crystal, or sapphire fibers for precise, EMI-immune sensing in harsh environments. Overview and AdvantagesHigh-temperature fiber optic sensors use optical fibers as the sensing medium, offering significant advantages over traditional electronic sensors, including immunity to electromagnetic interference, compact size, remote detection, and the ability to perform distributed measurements over long distances. They are widely applied in aerospace, power systems, oil & gas, metallurgical processes, and nuclear energy, where extreme temperatures, high pressures, and strong radiation make conventional thermocouples or RTDs less reliable.

Sensing Principles

These sensors operate based on changes in light properties as it travels through the fiber. Key mechanisms include: Fiber Bragg Gratings (FBG): Temperature-induced wavelength shifts in reflected light allow high-precision point or quasi-distributed sensing. Distributed Temperature Sensing (DTS): Uses the intensity ratio between Stokes and anti-Stokes scattered light for long-range temperature profiling, suitable for distances up to 100 km.

Interferometric Sensors: Fabry-Perot cavities or other interferometers detect temperature changes via phase shifts in reflected light. Fluorescence-based Sensors: Measure temperature by analyzing the decay time of fluorescent signals in doped fibers.

Materials and Temperature Limits

The fiber material primarily determines the maximum operating temperature: Silica fibers: Typically limited to ~1000°C due to germanium dopant diffusion. Photonic crystal or hollow-core fibers: Can operate up to ~1300°C. Single-crystal fibers (e.g., sapphire, YAG): Stable operation below 1900°C, with sapphire Fabry-Perot sensors demonstrating prolonged stability above 1000°C and resolution better than 0.

5°C at 1300°C.

Sensor Design Examples

A notable design is the sapphire Fabry-Perot cavity sensor, where a thin sapphire plate forms the sensing cavity at the hot end of an alumina tube. Light from a single-mode fiber is collimated onto the cavity, and interference patterns are analyzed to determine temperature. This design separates the hot zone from the fiber lead, enhancing durability in extreme conditions.

ApplicationsHigh-temperature fiber optic sensors are used for: Combustion monitoring in gas turbines to optimize fuel efficiency and reduce emissions. Steel and glass production for quality control at molten temperatures. Aerospace engines to monitor turbine and combustion chamber temperatures, extending service life.

Nuclear reactors for in-pile temperature monitoring under high radiation and temperature conditions. Long-range distributed sensing in oil wells or pipelines for safety and operational monitoring. SummaryHigh-temperature fiber optic sensors combine robust materials, precise optical measurement techniques, and distributed sensing capabilities to provide reliable temperature monitoring in environments where traditional sensors fail.

Advances in sapphire and crystal fibers have pushed operational limits close to 1900°C, making them indispensable in modern industrial, aerospace, and energy applications.
