How to use a fiber optic splitter box

Connecting a fiber optic splitter box involves identifying input/output ports, preparing fiber cables, and carefully splicing or patching fibers to ensure minimal signal loss. Step 1: Identify the Splitter Box and PortsA fiber optic splitter box, also called an optical distribution box (ODB), houses the splitter, splice trays, and adapter panels. It protects the fibers and manages bend radius, strain relief, and environmental sealing.

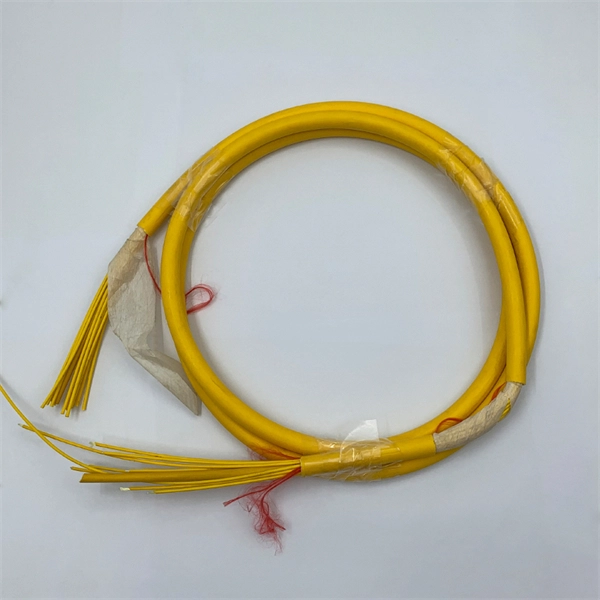

Typically, the box has: Input port: Receives the main feeder fiber from the central office or ONT. Output ports: Distribute the signal to multiple subscriber lines. Step 2: Prepare Fiber Optic CablesMeasure and cut the fiber cables to the required length.

Strip the protective jacket carefully to expose the inner fiber. Clean the fiber ends using a fiber cleaning tool to remove dust or debris, which is critical to prevent signal loss. Step 3: Connect the Input FiberConnect the main feeder fiber to the input port of the splitter.

Use the appropriate connector type (SC/APC, LC, etc.) matching the splitter specifications. Step 4: Connect Output FibersConnect each subscriber fiber to the output ports of the splitter. If cascading splitters, link one output of the primary splitter to the input of the secondary splitter using a fiber patch cable.

Ensure split ratios (e.g., 1: 2, 1: 4, 1: 8) are compatible with your network design. Step 5: Secure and OrganizePlace fibers in the splice trays or routing channels inside the box to maintain proper bend radius. Close the box securely to protect fibers from environmental exposure and mechanical stress.

Step 6: Test the ConnectionsUse an optical power meter to measure signal strength at each output port. Verify that signal loss is within acceptable limits, typically around 3. 5 dB for a 1x2 splitter, and adjust connections if necessary.

Step 7: Placement ConsiderationsIndoor installation: Central computer rooms, floor wiring boxes, or weak current wells. Outdoor installation: Underground handholes or wall-mounted enclosures with proper IP rating. Ensure easy access for maintenance and future expansion.

By following these steps, you can safely connect a fiber optic splitter box, maintain signal quality, and ensure reliable distribution to multiple users.
