Rack Fiber Optic Patch Cord Installation Standards

Rack-mounted fiber optic patch cords should be installed following EIA-310 rack standards, IEC fiber handling guidelines, and proper bend-radius, cleaning, and labeling practices to ensure optimal performance and reliability.

Rack Mounting Standards

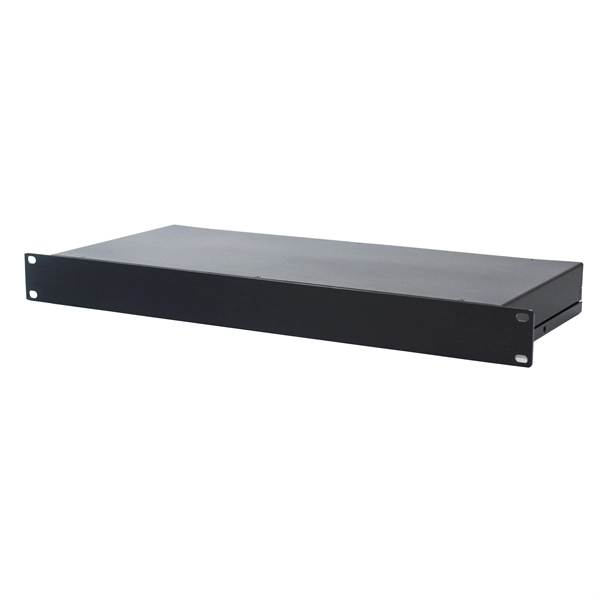

Fiber optic patch panels are typically installed in 19-inch or 23-inch racks, as defined by the EIA-310 standard. The horizontal spacing between the vertical posts determines the rack type, with 19-inch racks being the most common. Vertical spacing is measured in Rack Units (RU), where 1 RU equals 1.

75 inches (44. 5 mm). Patch panels are designed to occupy a specific number of RUs, which correlates with the number of fiber connections they can accommodate.

Patch Cord Handling and Installation

Proper installation is critical to maintain low insertion loss, stable return loss, and long-term reliability. Key practices include: Connector Cleaning: Every connector must be cleaned immediately before mating using lint-free wipes and isopropyl alcohol or a dedicated fiber cleaning kit. Even dust smaller than 20 microns can degrade signal by 20–30%.

Bend Radius Compliance: Fiber cables must respect the minimum bend radius specified by the manufacturer to prevent stress and attenuation. Pre-routed cable guides or raceways can help maintain proper bend radius. Routing and Securing: Avoid twisting or excessive tension.

Use cable management trays or guides to organize patch cords neatly within the rack. Connector Alignment: Ensure proper mating of SC/APC, SC/UPC, or other connector types. Cross-mating incompatible connectors must be avoided.

Standards and Compliance

Patch cord installation should comply with relevant IEC standards, including: IEC 60794 – Optical fiber cablesIEC 61300 – Fiber optic interconnecting devices and passive componentsIEC 61755 – Fiber optic connectors Additionally, installations should follow NEC (NFPA 70) and local electrical codes, as well as manufacturer instructions for safety and performance.

Labeling and Documentation

Proper labeling of patch cords and ports is essential for traceability and troubleshooting. Each connection should be documented in the Optical Distribution Network (ODN) or data center management system to prevent mis-patching during upgrades or maintenance.

Maintenance Best Practices

Inspect and clean connectors every time a patch cord is connected or reconnected. Regularly check for physical damage, excessive bending, or dust accumulation. Use optical microscopy for end-face inspection to detect scratches or debris.

Following these standards ensures optimized network performance, reduced downtime, and extended service life of fiber optic infrastructure in rack-mounted environments.
