How to install fiber optic cables for surveillance

Installing fiber optic cables for surveillance involves careful planning, proper cable handling, precise splicing, and thorough testing to ensure high-speed, reliable video transmission.

Planning and Site Assessment

Before installation, conduct a site survey to determine the optimal cable routes, identify potential hazards, and plan for conduit or pathway requirements. Consider the distance between cameras and the network hub, environmental conditions, and compliance with local building codes. Document the plan, including splice points, termination locations, and cable support structures, to guide the installation team and prevent future issues.

Cable Selection

Choose the appropriate fiber type based on distance and bandwidth needs: Single-mode fiber for long-distance, high-bandwidth surveillance links. Multi-mode fiber for shorter distances within buildings or campuses. Armored or outdoor-rated cables for exterior runs to protect against physical damage and environmental exposure.

Installation Techniques

Pulling or blowing: Fiber can be pulled through conduits or blown using compressed air for longer runs. Bend radius and tensile limits: Avoid sharp bends and excessive tension to prevent fiber breakage or signal loss. Use figure-8 loops when laying cable on surfaces to prevent twisting.

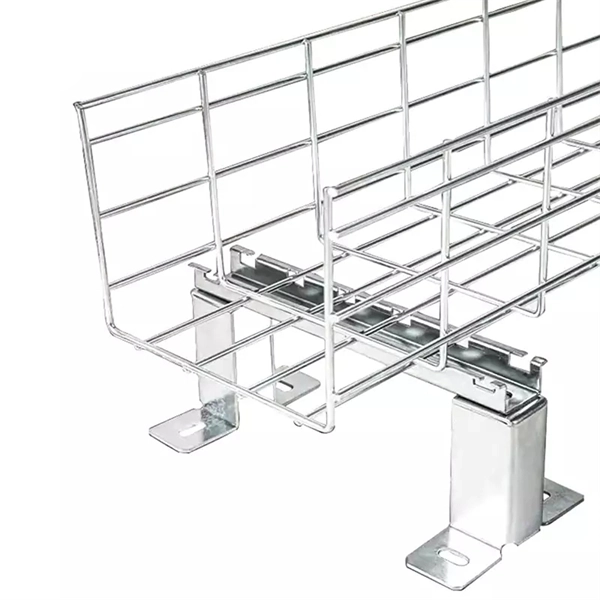

Securing cables: Use cable ties, clips, or trays to support the fiber every few feet, avoiding sagging or pressure points.

Splicing and Termination

Fusion splicing: Provides permanent, low-loss connections between fibers. Use a precision cleaver and fusion splicer for single-mode or multi-mode fibers. Mechanical splicing: An alternative for temporary or less critical connections.

Termination: Connect fibers to network devices or media converters using appropriate connectors. Inspect endfaces with a microscope to ensure cleanliness and proper alignment. Testing and VerificationOTDR (Optical Time-Domain Reflectometer): Detects splice quality, bends, and faults along the fiber.

Optical power meter and light source: Measures signal loss to ensure compliance with ANSI/TIA standards. Visual fault locator (VFL): Quickly checks continuity and identifies breaks or misalignments.

Safety and Best Practices

Wear cut-resistant gloves, safety glasses, and a respirator when handling fibers and cleaning chemicals. Avoid pulling cables over sharp edges or exposing them to extreme temperatures. Keep fiber ends capped when not in use to prevent contamination.

Maintain a clean workspace and use proper tools, including fiber strippers, cleavers, and cleaning kits. By following these steps—planning, selecting the right cable, careful installation, precise splicing, and thorough testing—you can ensure a reliable fiber optic network for your surveillance system that delivers high-quality video with minimal signal loss.
