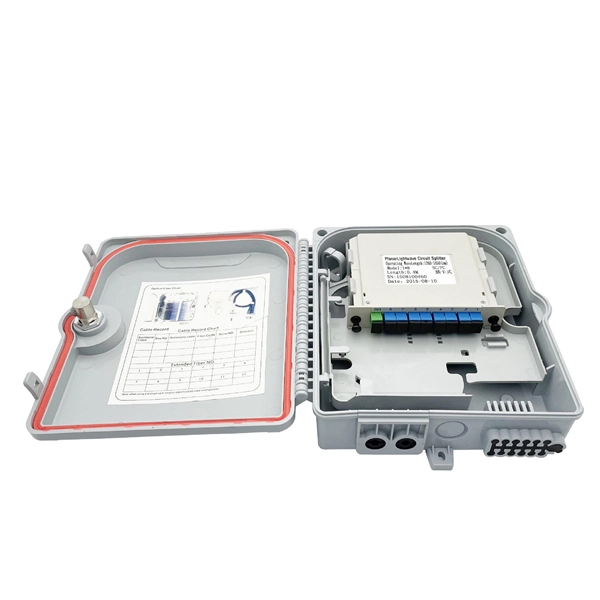

How to connect a 2-core fiber optic connector jack

Fibre interconnection and data room reference Published 20 Mar 2026

Use this reference to prepare product questions for FD SOLUCIONES. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Connecting a 2-core fiber optic connector jack requires careful preparation, precise alignment, and proper testing to ensure optimal signal transmission. Step 1: Identify Connector Type and EquipmentDetermine the type of 2-core (duplex) connector you are using, such as LC duplex, SC duplex, or MPO. Duplex connectors have two fibers in a single housing, often color-coded for transmit (Tx) and receive (Rx) channels.

Ensure you have the appropriate adapter or mating sleeve for the connector type, which aligns the ferrules of the two fibers for proper optical contact. Step 2: Prepare the Fiber CableStrip the outer jacket carefully using a fiber optic stripping tool to expose the two inner fibers. Clean the fiber ends with a specialized fiber cleaning solution and lint-free wipes or cleaning rods to remove dust and contaminants.

Inspect the fiber ends under a microscope to ensure they are free of scratches or debris, which can cause signal loss. Step 3: Align and Insert the FibersFor duplex connectors, ensure each fiber is correctly oriented according to Tx and Rx markings. Insert the ferrules into the adapter or mating sleeve, which may be ceramic or phosphor bronze, ensuring the fibers are aligned precisely.

Depending on the connector type, secure the connection using the locking mechanism: push-pull for SC, twist-on for ST, or snap-in for LC. Step 4: Secure the ConnectionIf using field-attachable connectors, you may need to apply epoxy or mechanical splice to stabilize the fibers. For pre-terminated connectors, simply ensure the connector clicks or locks into place and that the duplex clip is properly seated.

Step 5: Test the ConnectionUse an optical power meter or Optical Time Domain Reflectometer (OTDR) to verify signal strength and check for losses or reflections. Confirm that the Tx and Rx channels are correctly matched to avoid cross-talk or signal errors. Step 6: Cable ManagementRoute the duplex cable carefully, avoiding sharp bends that exceed the minimum bend radius.

Use velcro straps or cable managers to secure excess cable and prevent tension on the fibers. By following these steps, you can ensure a reliable and high-performance connection for a 2-core fiber optic connector jack, minimizing signal loss and maintaining network integrity.
